Servo Cable Designer

Contact Information:

Name:

Company:

Email:

Phone:

System Information:

Amplifier Manufacturer:

Motor Manufacturer:

Amplifier part#:

Motor Part #:

Quantity:

Comments:

Part Number Example:                    XXXX05-PW-ORSH-65A1-050

Amplifier Model Code
Added By DCS

Motor Series Code
Added by DCS

Motor Output Wattage
Code to be added by DCS
05=50 Watts
   1=100 Watts
10=1000 Watts
         Etc.

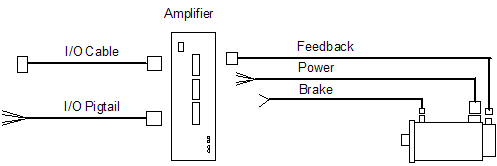

Assembly Type
FB = Encoder/Feedback                            PW = Power
PB = Power w/Integral Brake                    BK = Brake
IO = I/O Cable Assembly
IP = I/O Pigtail w/labeled wires

Cable Jacket
OR = Oil Resistant PVC               UR = PUR
UV = Outdoor                                XX = Nothing Special

Shielding &Flexing
NS = Non-Shielded, Std Flex                       SS = Shielded, Std Flex
NH = Non-Shielded, High Flex                   SH = Shielded, High Flex

Sealing
20 = IP20                    65 = IP65
55 = IP55                    67 = IP67

Motor Connector
ST = Straight                          A1 = RT Toward Shaft
RT = Right Angle                    A2 = RT Opposite Shaft

Length in Feet
020 =20 Feet
